- In the US we generally have good connectivity, but not always
- New markets for cloud apps
- Globally connectivity varies
- Unavailable servers
Why Does Offline Matter?
Why Does Offline Matter To CURE?
The Problem: 29 countries
The Solution: "Offline First" EMR
Rules for Survival
- Live off the grid in a fortified shelter
- Store your Supplies
- Have adequate weaponry
- Have an escape plan... and follow it
Live off the grid: Application Cache
Live off the grid: Application Cache
<html manifest="manifest.appcache">
CACHE MANIFEST
#version 1.0
CACHE:
#files required for offline
/css/mycss.min.css
/images/lol_cat.png
/js/myjs.min.js
NETWORK:
#fetch everything else from the network when online
*
Live off the grid: Application Cache
<html manifest="manifest.appcache.php">
<?php
function autoVer($filename) {
//return filename with modified timestamp
}?>
CACHE MANIFEST
#version 1.0 <?php autoVer('js/app-all.js'); ?>
CACHE:
#files required for offline
/css/mycss.min.css
/images/lol_cat.png
<?php autoVer('js/app-all.js'); ?>
NETWORK:
#fetch everything else from the network when online
*
Application Cache Browser Support
Store Supplies: IndexedDB
Store Supplies: IndexedDB
<script>
window.indexedDB = window.indexedDB || window.webkitIndexedDB || window.mozIndexedDB;
var myDB, dbVersion = 1, openRequest = window.indexedDB.open('MyDatabase', dbVersion);
openRequest.onerror = function(errorEvent) {
//Async response, something didn't work
}
openRequest.onsuccess = function(successEvent) {
myDB = successEvent.target.result; //Async response, grab the database from the request.
doStuffAfterOpen(); //Database is ready for use
}
openRequest.onupgradeneeded = function(upgradeEvent) { //Version change!!
myDB = upgradeEvent.target.result;
//Define database structure
var newObjectStore = myDB.createObjectStore('lolcats', { keyPath: 'id' });
newObjectStore.createIndex('nameidx', 'name', { unique: true });
newObjectStore.createIndex('categoryidx', 'category');
}
</script>
Store Supplies: IndexedDB
<script>
function doStuffAfterOpen() { //This will only work after the async call to open the DB
var transaction = myDB.transaction('lolcats','readwrite');
var lolStore = transaction.objectStore('lolcats');
var addRequest = lolStore.add({
id: 1, name: 'Caturday', category: 'Lazy kitty',
url: 'http://cheezburger.com/6677232128'
});
addRequest.onsuccess = function(successEvent) {//Async response, yes you can haz cheezburger
};
addRequest.onerror = function(errorEvent) {//Async response, no cheezburger for you
};
var getRequest = lolStore.get(1); //Get by id
getRequest.onsuccess = function(successEvent) { //Async response
console.log("Funny kitty here: " + getRequest.result.url);
};
getRequest.onerror = function(errorEvent) {//Async response, no funny kitties here};
}
</script>
Store Supplies: IndexedDB
<script>
var index = lolStore.index('nameidx'),
keyRange = IDBKeyRange.bound('C', 'H'), //Search for names between C - H
idxRequest = index.openCursor(keyRange);
idxRequest.onsuccess = function(successEvent) { //Async response
var cursor = successEvent.target.result;
if (cursor) {
console.log("Using key range C - H, Found kitty with name of:"+cursor.key);
cursor["continue"]();
}
};
index = lolStore.index('categoryidx');
keyRange = IDBKeyRange.only('Cat beard'); //Search for specific index value of Cat beard
idxRequest = index.openCursor(keyRange);
idxRequest.onsuccess = function(successEvent) {//Found cat beards!!!!};
</script>

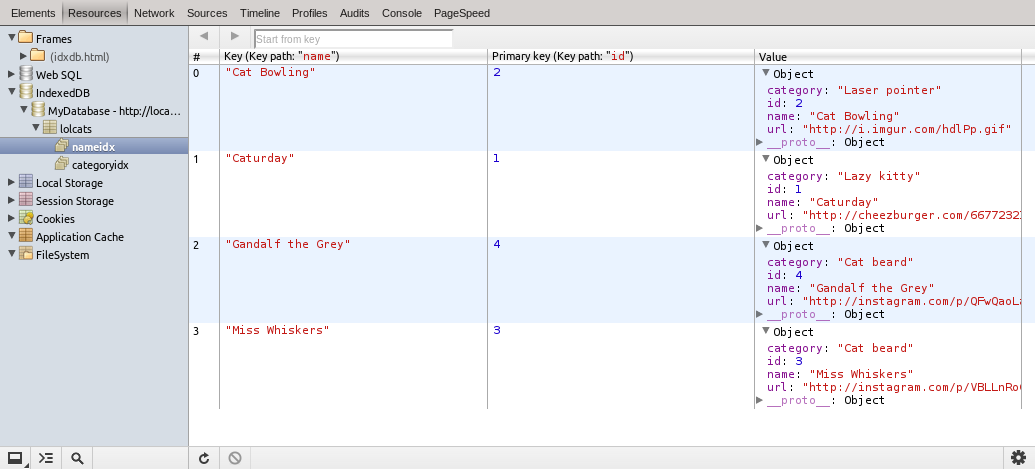

Store Supplies: IndexedDB
IndexedDB Browser Support
IndexedDB Browser Support with Polyfill
Adequate Weaponry: FileSystem API
Adequate Weaponry: FileSystem API
var fileSystem, size = 1024*1024; //1MB
function handleError(errorEvent) {
console.log('Error with filesystem API'); //Async error handler
}
function openFileSystem() {
window.requestFileSystem(PERSISTENT, size, handleOpenFileSystem, handleError);
}
function handleOpenFileSystem(newFileSystem) {
fileSystem = newFileSystem;
//Save file from <input type="file" name="fileinput" id="fileinput">
var fileToSave = document.querySelector('#fileinput').files[0];
fileSystem.root.getFile(fileToSave.name, {create: true, exclusive: true}, function(fileEntry) {
fileEntry.createWriter(function(fileWriter) {
fileWriter.write(fileToSave);
console.log("file available at:"+fileEntry.toURL());
}, handleError);
}, handleError);
}
navigator.webkitPersistentStorage.requestQuota(PERSISTENT, size, openFileSystem, handleError);
Adequate Weaponry: FileSystem API
<script>
function getFileAsDataURL(fileSystem) {
//First get the file entry representing the call (async response)
fileSystem.root.getFile('lol_cat.jpg', {}, function(fileEntry) {
//Next get the actual file (async response)
fileEntry.file(function(fileToRead) {
//Next read the file as dataURL(async response)
var reader = new FileReader()
reader.onloadend = function(readerEvent) {
var dataURL = readerEvent.target.result;
};
reader.readAsDataURL(fileToRead);
}, handleError);
}, handleError);
}
window.requestFileSystem(PERSISTENT, size, getFileAsDataURL, handleError);
</script>
FileSystem Browser Support
FileSystem Browser Support: Polyfill
FileSystem Browser Support: Polyfill
See it working: https://github.com/jkleinsc/polypolyfile
An Escape Plan
- Trust no one
- Know your surroundings
- Monitor your exits
- Think on your feet
An Escape Plan: navigator.onLine
-
window.navigator.onLine
"Returns false if the user agent is
definitely offline (disconnected from the
network). Returns true if the user agent
might be online. The events online and
offline are fired when the value of this
attribute changes." - *Might* be online??
- XHR is our friend
- window.online event gives a hint of
online availability
An Escape Plan: navigator.onLine
//Initialize connection status to navigator.onLine property.
var onlineStatus = navigator.onLine;
$( window ).on( "online", function( event ) {
onlineStatus = true; //Persist offline data to the server
});
$( window ).on( "offline", function( event ) {
onlineStatus = false;
});
$.ajax({
cache: false, dataType: "json", url: "/save", timeout: 500, type: "POST",
data: {"foo": "bar"},
error: function( jqXHR, textStatus, errorThrown ) {
onlineStatus = false; //The ajax call failed, therefore the server is offline to us.
},
success: function( data, textStatus, jqXHR ) {
onlineStatus = true; //The ajax call succeeded, therefore the server is online to us.
}
});

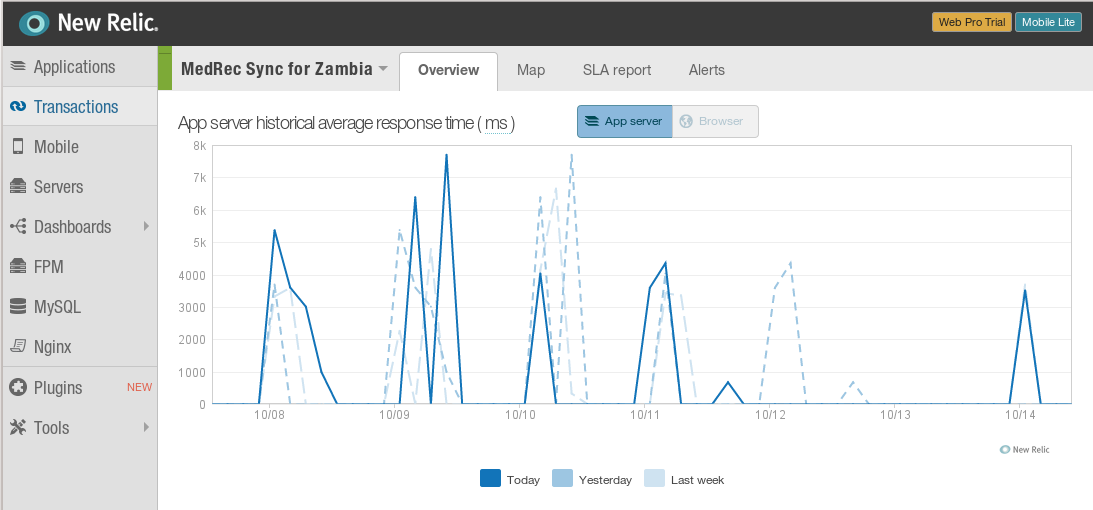

An Escape Plan: New Relic
An Escape Plan: New Relic Browser Traces
An Escape Plan: New Relic Key Transactions
An Escape Plan: Think on Your Feet
BEFORE:
[31-Jul-2013 12:48:19 UTC] Time to sync for Zambia was: 21.884245872498
[31-Jul-2013 12:49:42 UTC] Time to sync for Zambia was: 78.699893951416
[31-Jul-2013 12:50:00 UTC] Time to sync for Zambia was: 15.489302873611
AFTER:
[31-Jul-2013 13:45:53 UTC] Time to sync for Zambia was: 7.3927249908447
[31-Jul-2013 13:45:59 UTC] Time to sync for Zambia was: 3.7005159854889
[31-Jul-2013 13:46:01 UTC] Time to sync for Zambia was: 1.2956280708313
Thank You!
